The bifacial solar panel recycling line, delivered by guanma machinery solar panel recycling plant manufacturers, converts photovoltaic waste into profitable resources, recovering materials such as glass, copper, aluminum, plastic, and silicon wafers from photovoltaic modules..
Raw Materials & Final Products
| Composition | Proportion |
| Glass | 65-70% |
| Aluminum Frame | 10-15% |
| Silicon Cell | 5-8% |
| Backsheet | 5% |
| EVA | 6-8% |
| Conductive Materials | 1% |
| Junction Box | 2-3% |
Input Raw Materials: Double sides glass solar panels; primarily designed for panels with aluminum frame, tempered glass front and back, EVA encapsulant, silicon cells, and copper strips & wires.

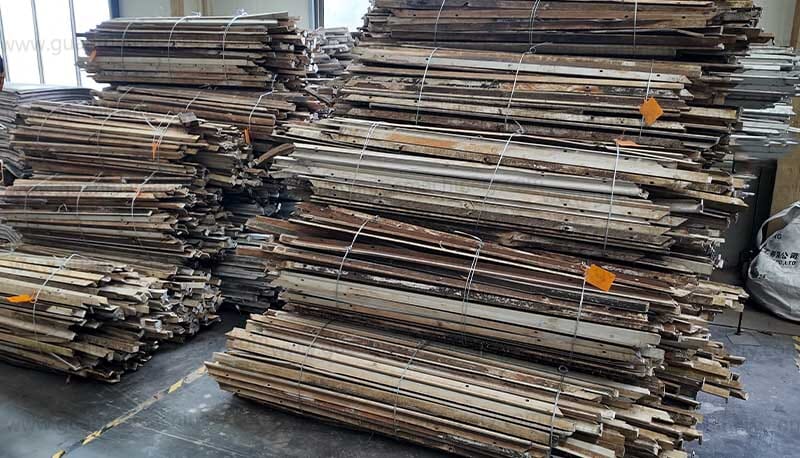

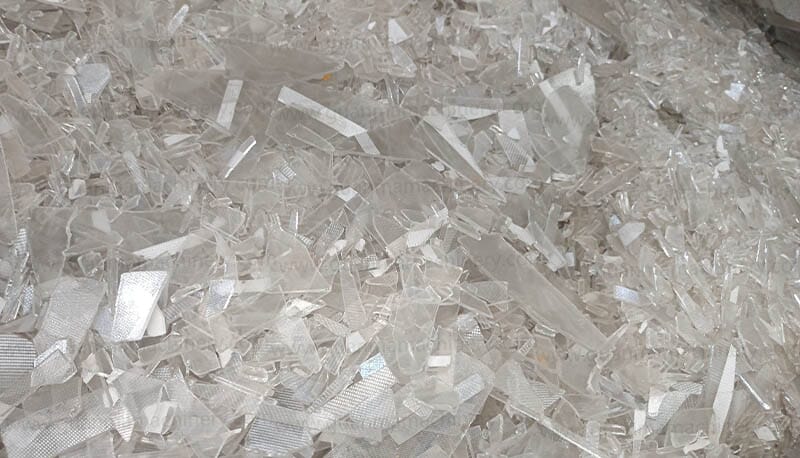

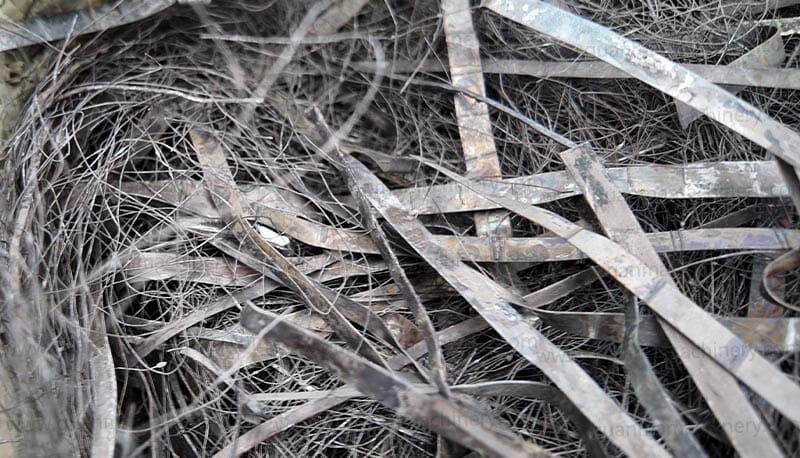

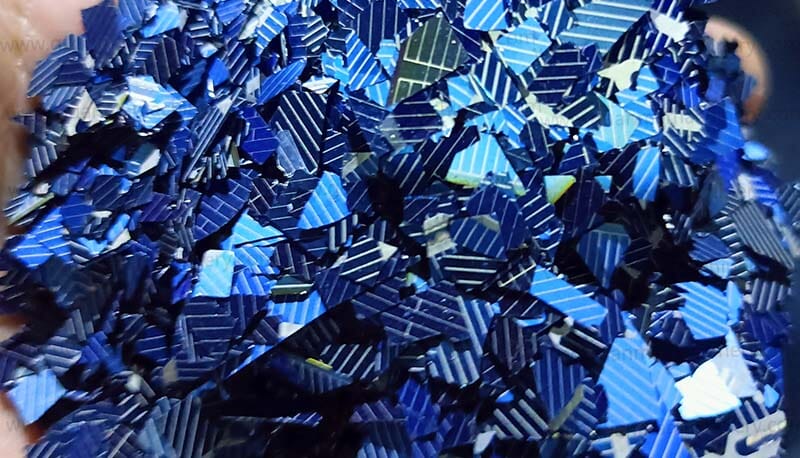

Output Final Products: Aluminum frames, glass, silicon cells, copper strips & wires.

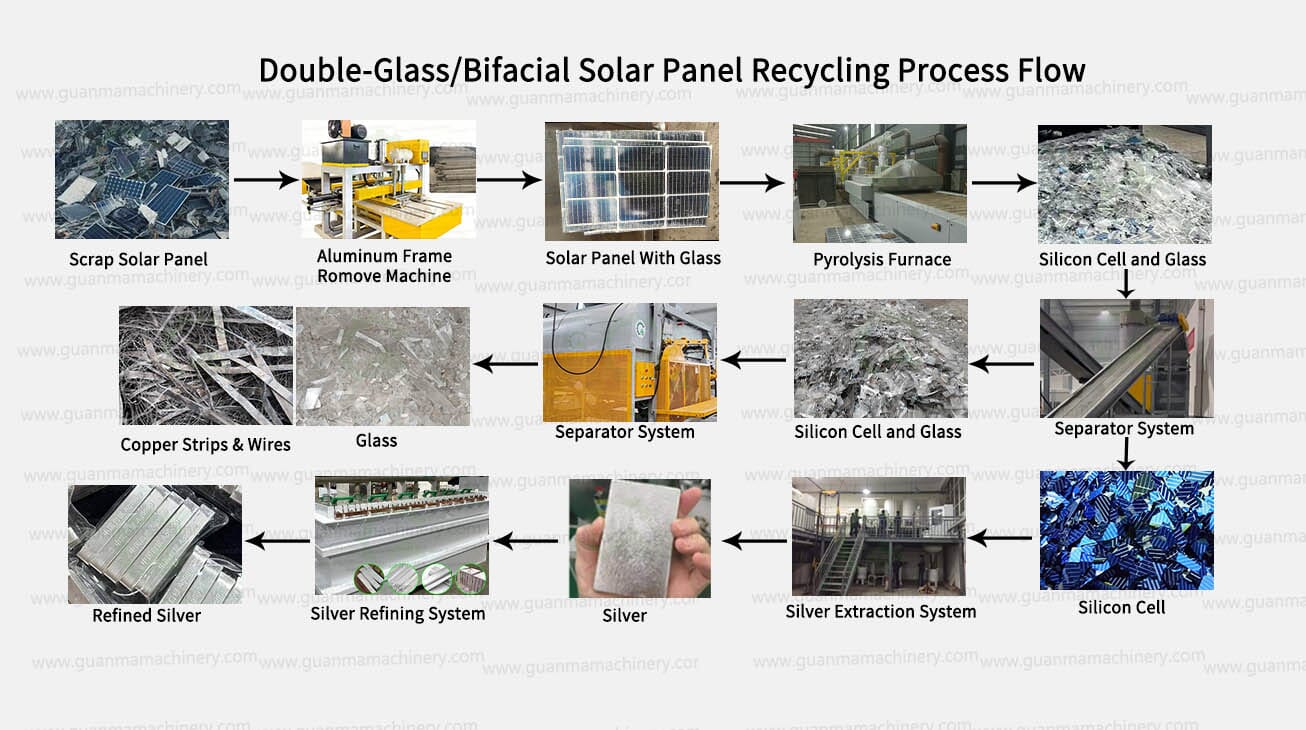

Bifacial Solar Panel Recycling Process Flow
Double Sides Glass Solar Panel Recycling Process
For double sides glass solar panels, our bifacial solar panel recycling process includes an automatic frame removal machine, a pyrolysis system, and a sorting system.
Fully Automatic Frame Removal Machine
Effectively removes the aluminum alloy frame from the solar panel, with a glass residue rate of less than 1%, can be put into aluminum smelting system directly.

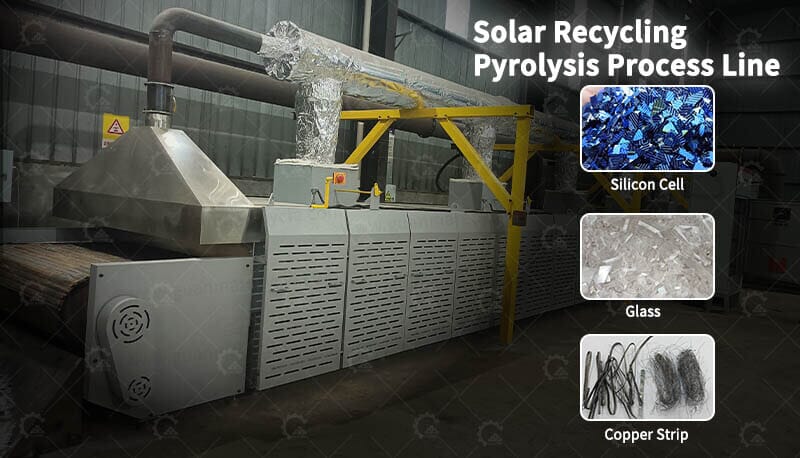

Solar Panel Pyrolysis Recycling System
After frame removing, the solar panels are fed into a pyrolysis furnace. At a pyrolysis temperature of 400℃- 550℃, the EVA is decomposed and enters the flue gas treatment system for secondary combustion heat recovery. The exhaust gas meets emission standards(with pyrolysis furnace, the silver loss will be lowest, Because, our pyrolysis furnace with constant temperature control, in this working condition, very less silver will be volitilized).
Glass, silicon wafers, copper strips, and copper wires, after passing through a cooling system, enter the sorting system.
Solar Panel Sorting System
Our company’s independently developed glass, silicon wafer, and copper strip/wire sorting system can effectively separate glass and silicon wafers, achieving a recovery rate and purity of over 99%.

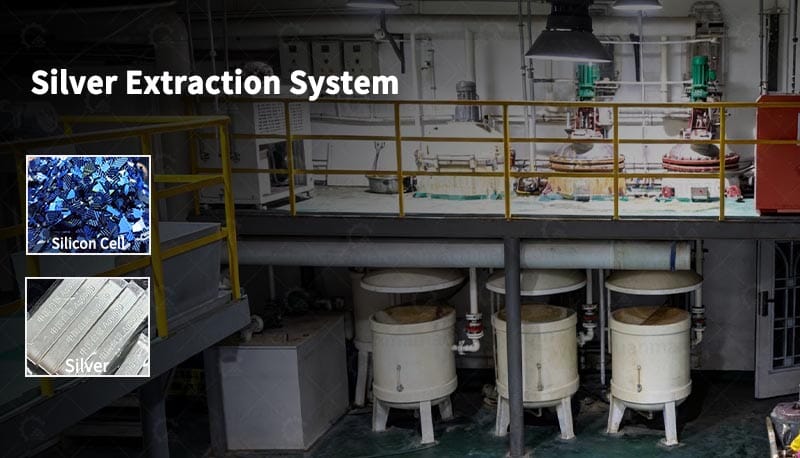

Silver Extraction System (Optional)
Except the recovery of glass, copper, aluminum, and plastic from photovoltaic modules, silver extraction is also a crucial aspect of photovoltaic panel recycling. Our company’s silver extraction system, through processes of leaching, filtration, impurity removal, precipitation, and reduction etc., can extract silver from silicon powder and silicon wafers, achieving a recovery rate of more than 99% and a purity of 99.99%.
| Technical Parameters | Specification |
| Capacity | 40-70PCS/h |
| Raw Material Size | Length(mm)：1000-2400 Width(mm)：800-1300 |
| Power | 4Kw |
| Size of Machine | 2100X2140X2130mm |
| Operating Mode | Automated/Semi-automated |
| Weight | 1200KG |
| Model | Capacity kg/day | Power/kw | Size(Length*Width*Height) |
| SPL-300 | 1-2T/H | 350Kw | 32*7*6m |
| SPL-500 | 2-3T/H | 400Kw | 40*8*6m |
| SPL-2000 | 3-5T/H | 480Kw | 48*10*6m |
| This data is for reference only. Please consult Guanma Machinery for detailed configuration. | |||
| Model | Capacity kg/day | Power/kw | Size(Length*Width*Height) |
| SER-20 | 20kg | 5 | 1500*700*1850 |
| SER-50 | 20-50kg | 10 | 1600*800*1900 |
| SER-100 | 50-100kg | 15 | 570*840*1200 |
| SER-200 | 100-200kg | 25 | 1200*840*1300 |
| SER-300 | 200-300kg | 39 | 1930*840*1300 |
Technical Parameter
Bifacial Solar Panel Recycling Line Technical Parameters
Working voltage can be customized, and if you have other requrement and want to know more details, please contact us.(The data in this table are for reference only)
| Model | Capacity kg/h | Power/kw | Size L*W*H（m） |
| DGL-1000 | 1000kg | 350kw | 25*10*6m |
| DGL-2000 | 2000kg | 400kw | 33*13*6m |
| Note: Capacity can be customization(The data in this table are for reference only) | |||
Key Bifacial Solar Panel Recycling Equipment Features
✅ Specialized for Bifacial Panels: Optimized for double-glass construction, unlike lines designed for traditional backsheet modules.
✅High-Purity Frame Removal: <1% glass contamination on aluminum frames enables direct recycling.
✅ Eco-Friendly Pyrolysis: Low-temperature, oxygen-controlled process with integrated gas treatment and heat recovery.
✅ Intelligent Sorting: Proprietary technology ensures near-total separation of glass, silicon, and metals.
✅ High Recovery Rate: Proven solar panel recycling technology, Effectively recovers silicon, silver, copper, aluminum, and glass, achieves >99% purity and recovery.
✅ Low-Cost Operation: Our systems are specifically designed to reduce your double-sided glass solar panel recycling plant cost through high automation, energy-efficient pyrolysis with heat recovery, and superior material yield.
✅ Emission Compliant: Full system meets international environmental and safety standards.
As a manufacturer of solar panel recycling machine, Guanma Machinery provides customized processes based on different types of solar panel waste. If you intend to process single-glass photovoltaic panels, please refer to the monofacial solar panel recycling line!
