Why solar cell waste demands dedicated Silver Extraction Machinery
Standard precious metal recovery machines often fail when fed with solar cell scrap. The silver is locked inside multi-layer structures, mixed with aluminum, silicon, and low-temperature glass frit. Off-the-shelf leaching tanks can’t handle the chemical balance required, leading to low recovery and dangerous fumes.
Our solar cell silver recovery machine is engineered specifically for these challenges. It can process:
- Defective or broken crystalline silicon solar cells
- Dried silver paste residues and screen-printing waste
- Spent HNO₃-based etching baths and rinse waters
- HJT and TOPCon cell offcuts with low-temperature paste
- End-of-life photovoltaic panel fragments after delamination
By deploying a PV waste silver leaching plant designed for this exact feedstock, you stop losing fine silver particles and start producing saleable 99.9% pure silver ingots.
How our Silver Extraction Machinery maximizes recovery step by step
Here is the exact workflow of our photovoltaic waste precious metal extraction equipment so you can see why it outperforms conventional setups.
1. Pre-treatment and size reduction
Solar cell scraps first pass through a dedicated shredder and granulator that liberates the silver-containing layers without generating excessive dust.
2. Selective leaching with closed-loop chemistry
The core of the machine is a series of corrosion-resistant leaching reactors. The cyanide-free option meets the strictest EU and local environmental regulations while still achieving over 98% silver dissolution.
3. High-efficiency filtration and pregnant leach solution polishing
Once silver is dissolved, the slurry goes through a multi-stage filter press and ultra-fine clarification system, ensuring nothing contaminates the subsequent silver recovery step. The cleaned liquid enters a buffer tank, ready for electrolytic winning.
4. Electrolytic silver deposition or chemical precipitation
Specialized silver extraction machinery electrolytic cells using high-surface-area cathodes and optimized current densities, metallic silver plates out with exceptional efficiency. The choice is yours, based on desired purity, throughput, and downstream refining capabilities.
5. Silver powder drying, melting, and ingot casting
Recovered silver is washed, dried in an industrial vacuum dryer, and then melted in an induction furnace. The entire line can be configured to pour 1 kg to 15 kg ingots with purity exceeding 99.9%.
6. Wastewater treatment and zero liquid discharge
The spent solution after silver recovery is treated on-site through neutralization, metal precipitation, and advanced oxidation. Water is recycled back into the leaching circuit, achieving a zero liquid discharge design.
Advantages of guanma machinery’s silver paste recycling machinery
A solar waste precious metal recovery system is a long-term investment. Our machines are packed with features that reduce both operational stress and hidden costs.
PLC control system
Operators can start, stop, and adjust all parameters from a single HMI.
Modular design
Start with a compact 20 kg/day pilot line and expand to 500 kg/day or more by adding leaching and electrolytic modules.
Explosion-proof
Leaching reactors, solvent storage, and electrical panels are designed to safely handle nitric acid vapors and hydrogen gas, exceeding international safety standards.
High-purity output
Guanma Machinery electrolytic silver extraction yields cathode silver that can be melted directly into 99.99% ingots — no secondary refinery needed.
Comprehensive after-sales support
Installation supervision, operator training, and a 12-month warranty on all structural components come standard.
Application-specific silver recovery solutions
Whether you run a solar cell fab, an independent e-waste processor, or a centralized PV recycling hub, we have the right solar cell manufacturing scrap recycling machine for your operation.
- In-house solar factory recycling: Compact, fully enclosed systems that sit adjacent to production lines, allowing immediate reclamation of silver from broken cells and paste waste without shipping sensitive scrap off-site.
- Independent e-waste recycler line: High-throughput lines built to process mixed solar panel scrap from multiple sources, with advanced sorting and delamination up front.

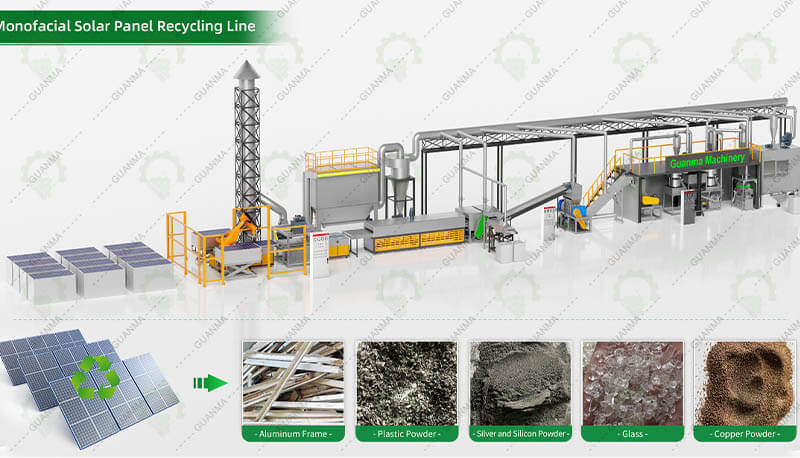

- End-of-life panel recycling plant: Integrated solar panel scrap silver leaching plant capable of handling entire laminated panels, recovering not only silver but also silicon, glass, and copper in valuable, marketable fractions.
Take the next step toward profitable silver reclamation
Contact Guanma Machinery now for a quote on silver extraction machinery and a customized silver recycling solution.
Frequently asked questions about Solar Cell Silver Extraction Machinery
Q: Can this machine handle both nitric acid and cyanide-free chemistries?
A: Yes. Our reactors are fabricated from highly corrosion-resistant materials compatible with both traditional nitric acid leaching and eco-friendly thiosulfate or glycine solutions.
Q: What purity of silver can I sell directly without further refining?
A: Our electrolytic winning stage delivers cathode silver that melts into 99.99% minimum purity ingots. Many customers sell directly to jewelry, electronics, and solar paste manufacturers without any intermediate refinery.
Q: How long does installation and commissioning take?
A: A typical silver extraction machinery installs in 5-15 working days, with another 5 days for commissioning and operator training. We provide on-site supervision and a detailed start-up checklist.
